ALUMINIUM VACUUM GLASS LIFTER

Technical Specifications

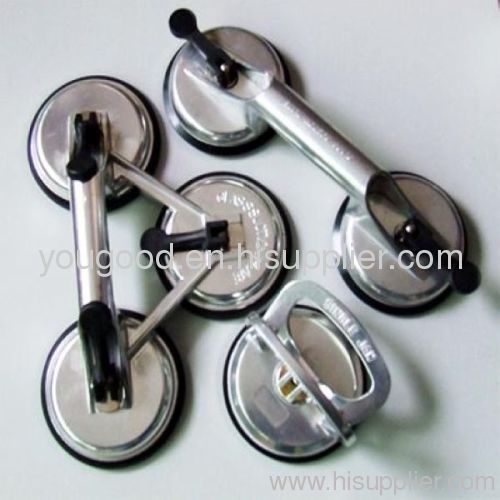

Model:One cup,Dual Cup and three cupsSuction Lifter

Product Use:lifting and moving non-porous materials.

Storage:When not in use,product should be stored in a dry ,not high temperature ,without direct sun shining location to inhibit rust and wear out.

Construction:Cast Aluminium and Rubber.

Maximum Vertical Capacity:35kg,85Kg 130kg

Maximum Attraction Capacity:50kg,100kg,150kg.

Rubber pad diameter:120mm.

Operation Direction

1. The principle of operation is by lever and pump action.

The round suction cups are pressed onto the surface of the object to the lifted.The lever grips are squeezed together into position.The rubber pads are then securely clamped to the surface by vacuum so that the object can be lifted,just flip back the levers.

2.Loaded Surface need to be smooth ,relatively flat and non-porous.

Surface should be free of oil ,grease or water ,otherwise slipping can occur ,Non-porous materials such as glass,plastic and polished stone are good examples.

Main functions:

1, Paving stones, ceramic tiles in construction.

2,Installing or replacing glass.

3,Renovating automobile shell.

Applicable range: Matters with clean, even surface and with no oil stains, water stains, or holes.
